Braided Construction Safety Nets

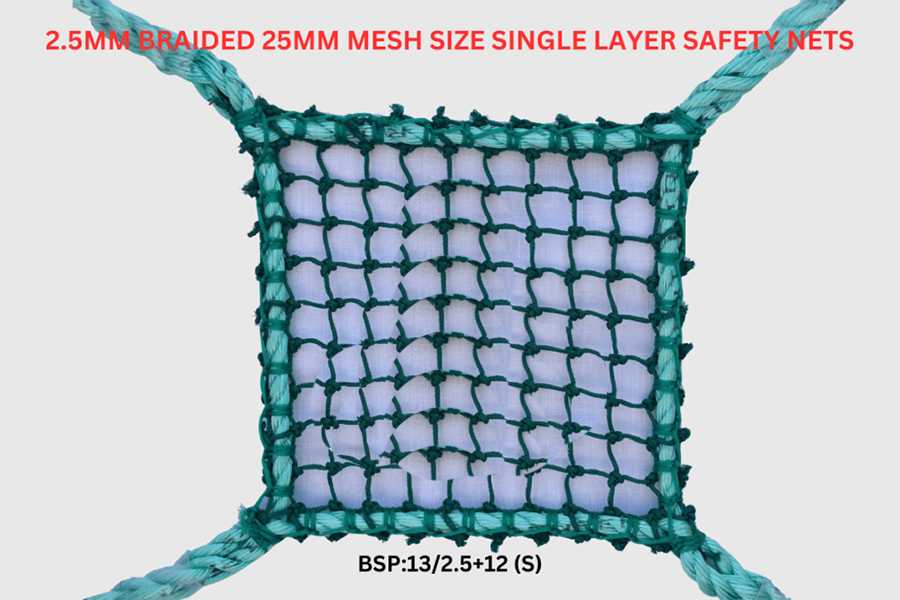

2.5mm Braided 25mm Mesh Size Single Layer Safety Nets
As a Industrial Braided Construction Safety Nets & Exporter in Maharashtra. We are currently suppling this category to our Customers.
| Product & Code | 2.5mm Braided 25mm Mesh Size Single Layer Safety Nets – BSP:13/2.5+12 (S) |
| Border & Tie Cord P.P.Rope Dia | 12mm [ IS: 14929 Breaking Strength 2700 kgf Modified Polypropylene filaments, UV Stabilized] |
| Inside Twine Dia | 2.5 mm Braided HDPE ( High Density Polyethene -Twine Breaking Strength 86 kgf – IS:5185 – Part 4 2018) |
| Mesh Size | 25mm x 25mm Square. (Knot Breaking Strength 120 kgf) |
| Fabricating | Machine Made Heat Treated Knotting |
| Tie Rope & Tie Cord | Tie cords 2 meter long at four corners and 1 meter long at every 2 meter |
| Standard Size | 5Mtr x 10mtr (Options of customized sizes are also available) |
| Standard/ Approved | P.P. Rope Use By Certified to IS:14929 & Safety Net Made By IS Per EN:1263 Part 1 |
| Make | TUF NETS WITH MFGR CERTIFICATES |

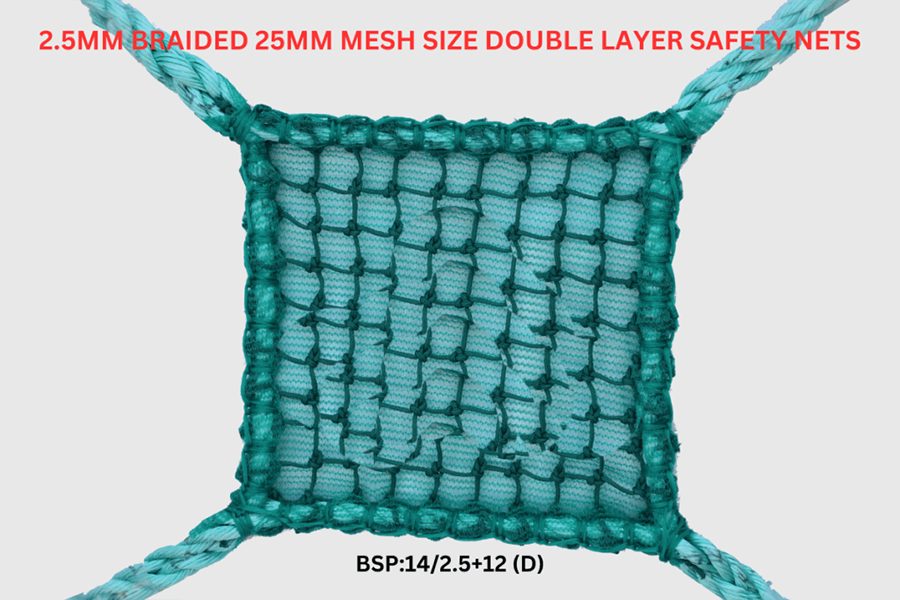

2.5mm Braided 25mm Mesh Size Double Layer Safety Nets
| Product & Code | 2.5mm Braided 25mm Mesh Size Double Layer Safety Nets – BSP:14/2.5+12 (D) |
| Border & Tie Cord P.P.Rope Dia | 12mm [ IS: 14929 Breaking Strength 2700 kgf Modified Polypropylene filaments, UV Stabilized] |
| Inside Twine Dia | 2.5 mm Braided HDPE ( High Density Polyethene -Twine Breaking Strength 86 kgf – IS:5185 – Part 4 2018) |
| Mesh Size | 25mm x 25mm Square. (Knot Breaking Strength 120 kgf) |
| Second Layer | HDPE Monofilament UV Stabilized 115-120 GSM Nets |
| Fabricating | Machine Made Heat Treated Knotting |
| Tie Rope & Tie Cord | Tie cords 2 meter long at four corners and 1 meter long at every 2 meter |
| Standard Size | 5Mtr x 10mtr (Options of customized sizes are also available) |
| Standard/ Approved | P.P. Rope Use By Certified to IS:14929 & Safety Net Made By IS Per EN:1263 Part 1 |
| Make | TUF NETS WITH MFGR CERTIFICATES |

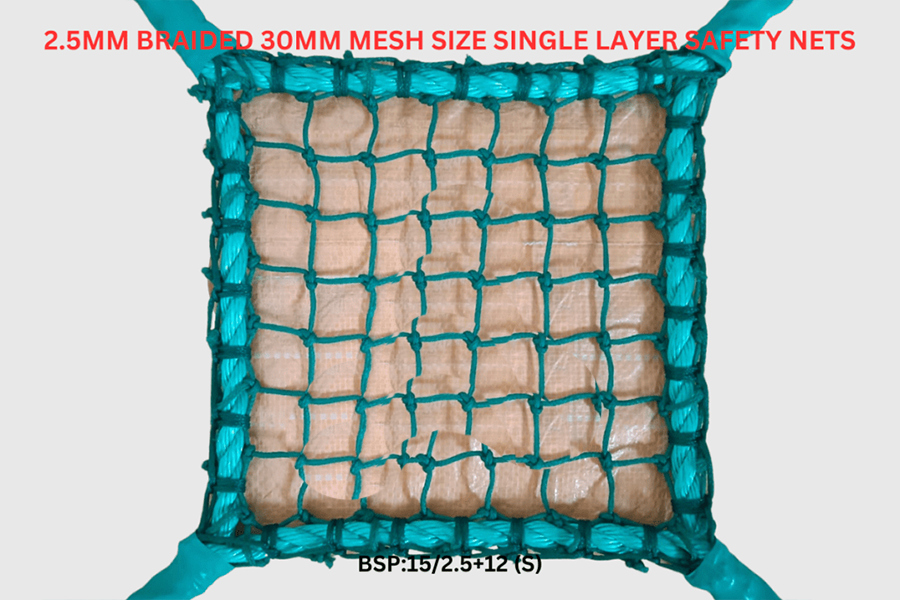

2.5mm Braided 30mm Mesh Size Single Layer Safety Nets
| Product & Code | 2.5mm Braided 30mm Mesh Size Single Layer Safety Nets – BSP:15/2.5+12 (S) |
| Border & Tie Cord P.P.Rope Dia | 12mm [ IS: 14929 Breaking Strength 2700 kgf Modified Polypropylene filaments, UV Stabilized] |
| Inside Twine Dia | 2.5 mm Braided HDPE ( High Density Polyethene -Twine Breaking Strength 86 kgf – IS:5185 – Part 4 2018) |
| Mesh Size | 30mm x 30mm Square. (Knot Breaking Strength 120 kgf) |
| Fabricating | Machine Made Heat Treated Knotting |
| Tie Rope & Tie Cord | Tie cords 2 meter long at four corners and 1 meter long at every 2 meter |
| Standard Size | 5Mtr x 10mtr (Options of customized sizes are also available) |
| Standard/ Approved | P.P. Rope Use By Certified to IS:14929 & Safety Net Made By IS Per EN:1263 Part 1 |
| Make | TUF NETS WITH MFGR CERTIFICATES |

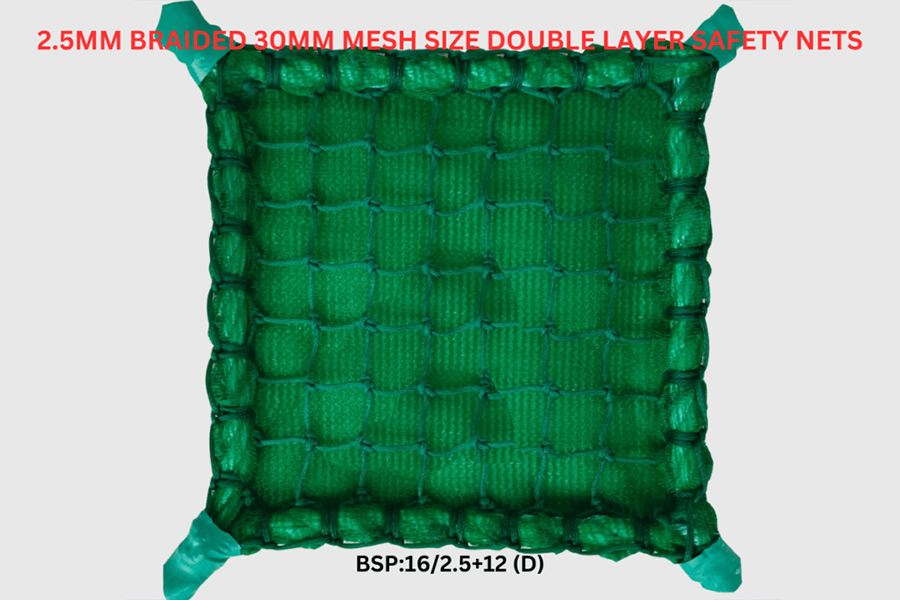

2.5mm Braided 30mm Mesh Size Double Layer Safety Nets
| Product & Code | 2.5mm Braided 30mm Mesh Size Double Layer Safety Nets – BSP:16/2.5+12 (D) |
| Border & Tie Cord P.P.Rope Dia | 12mm [ IS: 14929 Breaking Strength 2700 kgf Modified Polypropylene filaments, UV Stabilized] |
| Inside Twine Dia | 2.5 mm Braided HDPE ( High Density Polyethene -Twine Breaking Strength 86 kgf – IS:5185 – Part 4 2018) |
| Mesh Size | 30mm x 30mm Square. (Knot Breaking Strength 120 kgf) |
| Second Layer | HDPE Monofilament UV Stabilized 115-120 GSM Nets |
| Fabricating | Machine Made Heat Treated Knotting |
| Tie Rope & Tie Cord | Tie cords 2 meter long at four corners and 1 meter long at every 2 meter |
| Standard Size | 5Mtr x 10mtr (Options of customized sizes are also available) |
| Standard/ Approved | P.P. Rope Use By Certified to IS:14929 & Safety Net Made By IS Per EN:1263 Part 1 |
| Make | TUF NETS WITH MFGR CERTIFICATES |

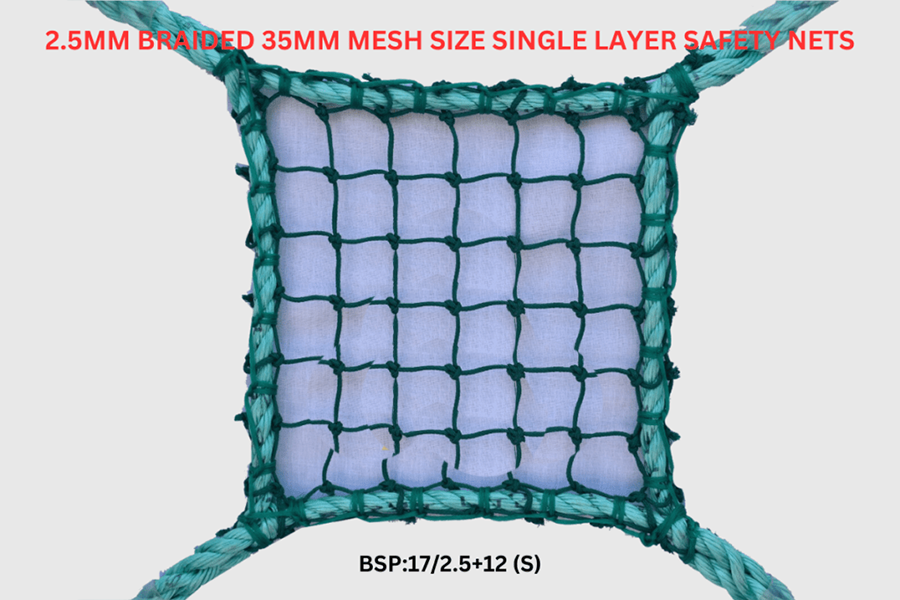

2.5mm Braided 35mm Mesh Size Single Layer Safety Nets
| Product & Code | 2.5mm Braided 35mm Mesh Size Single Layer Safety Nets – BSP:17/2.5+12 (S) |
| Border & Tie Cord P.P.Rope Dia | 12mm [ IS: 14929 Breaking Strength 2700 kgf Modified Polypropylene filaments, UV Stabilized] |
| Inside Twine Dia | 2.5 mm Braided HDPE ( High Density Polyethene -Twine Breaking Strength 86 kgf – IS:5185 – Part 4 2018) |
| Mesh Size | 35mm x 35mm Square. (Knot Breaking Strength 120 kgf) |
| Fabricating | Machine Made Heat Treated Knotting |
| Tie Rope & Tie Cord | Tie cords 2 meter long at four corners and 1 meter long at every 2 meter |
| Standard Size | 5Mtr x 10mtr (Options of customized sizes are also available) |
| Standard/ Approved | P.P. Rope Use By Certified to IS:14929 & Safety Net Made By IS Per EN:1263 Part 1 |
| Make | TUF NETS WITH MFGR CERTIFICATES |

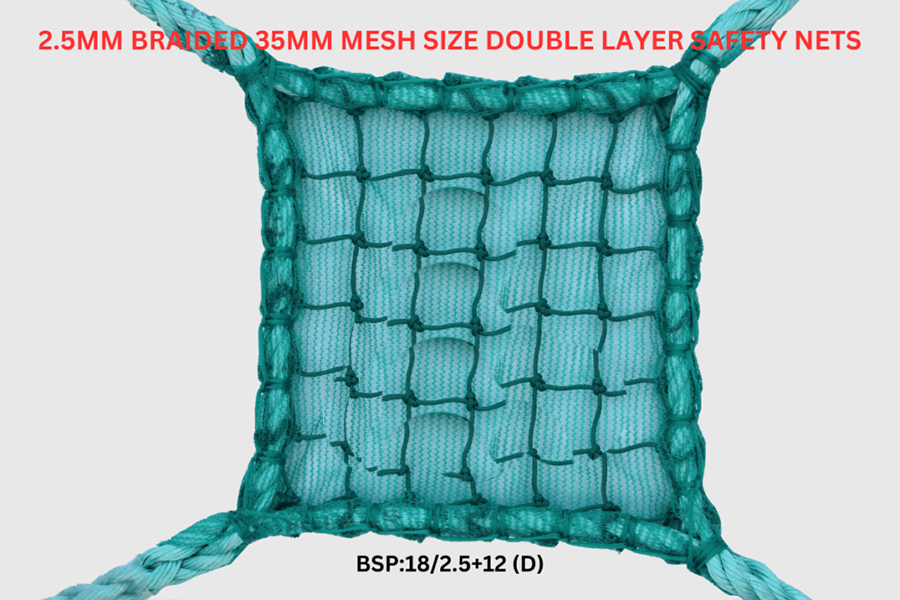

2.5mm Braided 35mm Mesh Size Double Layer Safety Nets
| Product & Code | 2.5mm Braided 35mm Mesh Size Double Layer Safety Nets – BSP:18/2.5+12 (D) |
| Border & Tie Cord P.P.Rope Dia | 12mm [ IS: 14929 – Breaking Strength 2700 kgf Modified Polypropylene filaments, UV Stabilized] |
| Inside Twine Dia | 2.5 mm Braided HDPE ( High Density Polyethene -Twine Breaking Strength 86 kgf – IS:5185 – Part 4 2018) |
| Mesh Size | 35mm x 35mm Square. (Knot Breaking Strength 120 kgf) |
| Second Layer | HDPE Monofilament UV Stabilized 115-120 GSM Nets |
| Fabricating | Machine Made Heat Treated Knotting |
| Tie Rope & Tie Cord | Tie cords 2 meter long at four corners and 1 meter long at every 2 meter |
| Standard Size | 5Mtr x 10mtr (Options of customized sizes are also available) |
| Standard/ Approved | P.P. Rope Use By Certified to IS:14929 & Safety Net Made By IS Per EN:1263 Part 1 |
| Make | TUF NETS WITH MFGR CERTIFICATES |

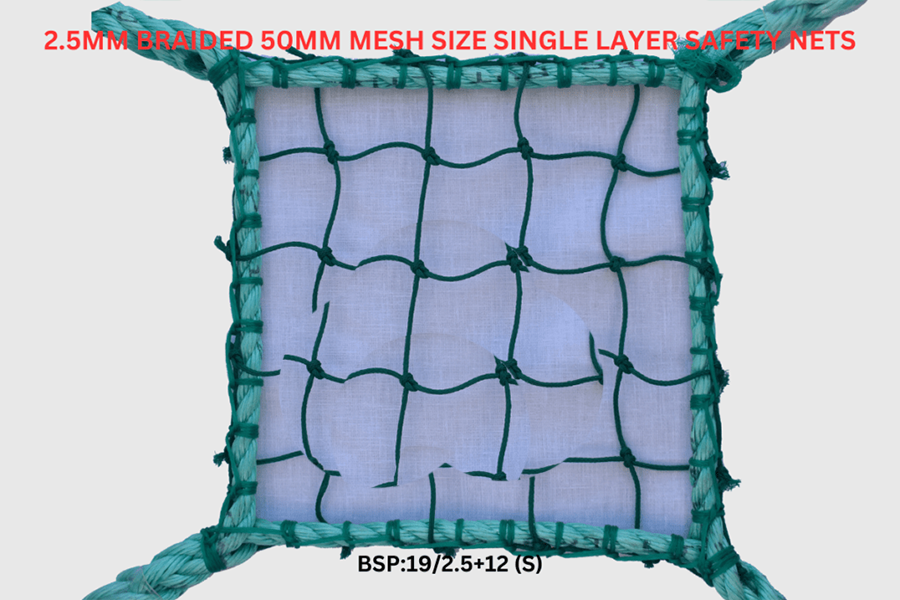

2.5mm Braided 50mm Mesh Size Single Layer Safety Nets
| Product & Code | 2.5mm Braided 50mm Mesh Size Single Layer Safety Nets – BSP:19/2.5+12 (S) |
| Border & Tie Rope | 12mm [ IS: 14929 Breaking Strength 2700 kgf Modified Polypropylene filaments, UV Stabilized] |
| Inside Twine Dia | 2.5 mm Braided HDPE ( High Density Polyethene -Twine Breaking Strength 86 kgf – IS:5185 – Part 4 2018) |
| Mesh Size | 50mm x 50mm Square. (Knot Breaking Strength 120 kgf) |
| Fabricating | Machine Made Heat Treated Knotting |
| Tie Rope & Tie Cord | Tie cords 2 meter long at four corners and 1 meter long at every 2 meter |
| Standard Size | 5Mtr x 10mtr (Options of customized sizes are also available) |
| Standard/ Approved | P.P. Rope Use By Certified to IS:14929 & Safety Net Made By IS Per EN:1263 Part 1 |
| Make | TUF NETS WITH MFGR CERTIFICATES |

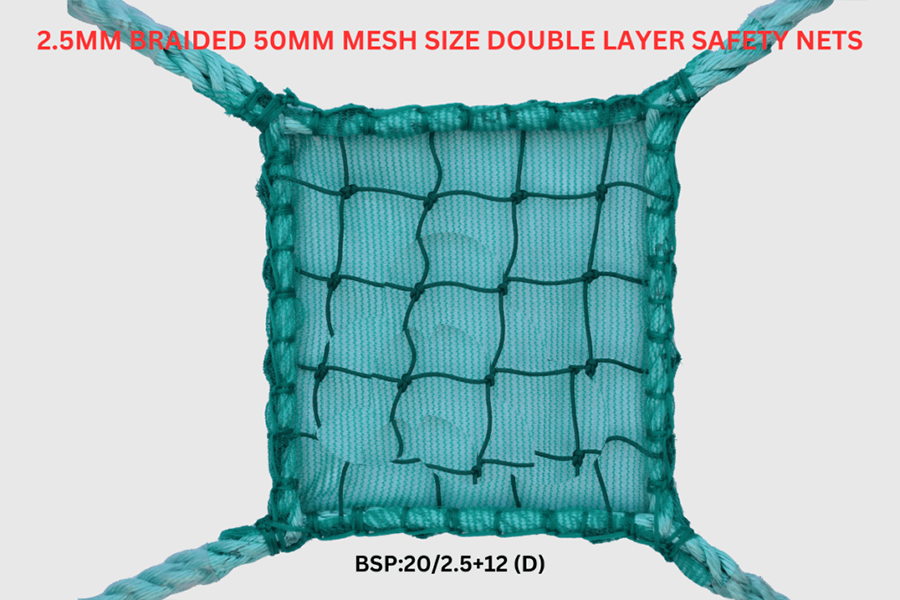

2.5mm Braided 50mm Mesh Size Double Layer Safety Nets
| Product & Code | 2.5mm Braided 50mm Mesh Size Double Layer Safety Nets – BSP:20/2.5+12 (D) |
| Border & Tie Cord P.P.Rope Dia | 12mm [ IS: 14929 Breaking Strength 2700 kgf Modified Polypropylene filaments, UV Stabilized] |
| Inside Twine Dia | 2.5 mm Braided HDPE ( High Density Polyethene -Twine Breaking Strength 86 kgf – IS:5185 – Part 4 2018) |
| Mesh Size | 50mm x 50mm Square. (Knot Breaking Strength 120 kgf) |
| Second Layer | HDPE Monofilament UV Stabilized 115-120 GSM Nets |
| Fabricating | Machine Made Heat Treated Knotting |
| Tie Rope & Tie Cord | Tie cords 2 meter long at four corners and 1 meter long at every 2 meter |
| Standard Size | 5Mtr x 10mtr (Options of customized sizes are also available) |
| Standard/ Approved | P.P. Rope Use By Certified to IS:14929 & Safety Net Made By IS Per EN:1263 Part 1 |
| Make | TUF NETS WITH MFGR CERTIFICATES |

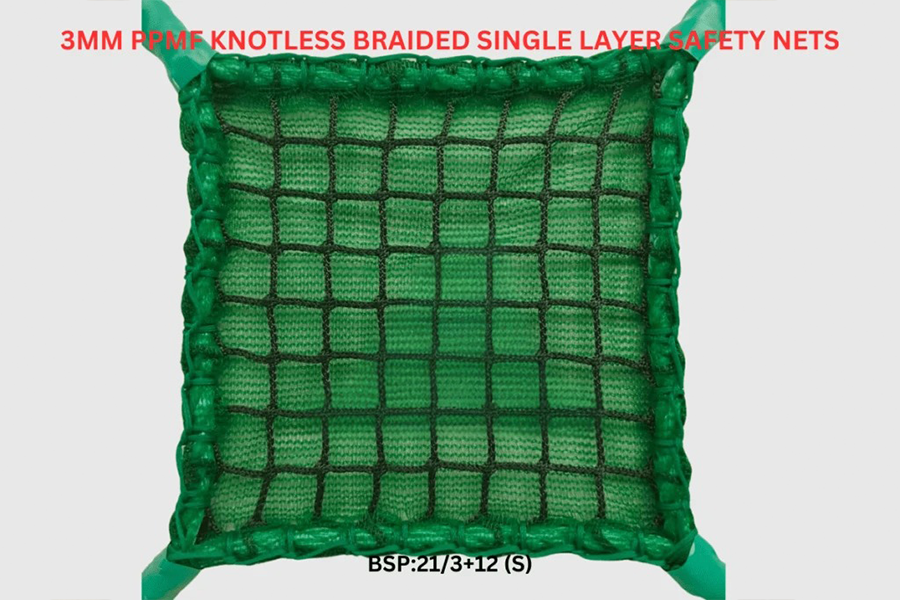

3mm PPMF Knotless Braided Single Layer Safety Nets
| Product & Code | 3mm PPMF Knotless Braided Single Layer Safety Nets – BSP:21/3+12 (S) |
| Border & Tie Cord P.P.Rope Dia | 12mm [ IS: 14929 Breaking Strength 2700 kgf Modified Polypropylene filaments, UV Stabilized] |
| Inside Twine Dia | 3.0MM PPKL |
| Mesh Size | Mesh Size 25mm, 30mm,35mm, 50mm |
| Fabricating | Machine Made Knotless type |
| Tie Rope & Tie Cord | Tie cords 2 meter long at four corners and 1 meter long at every 2 meter |
| Standard Size | 5Mtr x 10mtr (Options of customized sizes are also available) |
| Approval and Certification |
Testing Criteria for Safety Nets as per EN
1263 – 1 Drop test (dynamic test): The net
with stands drop of 100kg. Ball from a
height of 7m so that the energy of the dropping mass is 7KJ. The drop is done twice |
| Make | TUF NETS WITH MFGR CERTIFICATES |

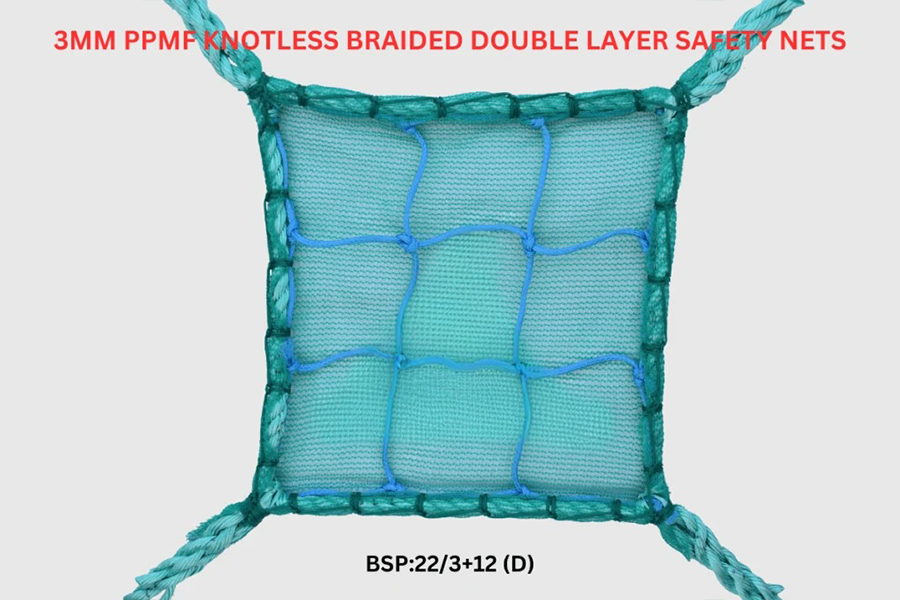

3mm PPMF Knotless Braided Double Layer Safety Nets
| Product & Code | 3mm PPMF Knotless Braided Double Layer Safety Nets – BSP:22/3+12 (D) |
| Border & Tie Cord P.P.Rope Dia | 12mm [ IS: 14929 Breaking Strength 2700 kgf Modified Polypropylene filaments, UV Stabilized] |
| Inside Twine Dia | 3.0MM PPKL |
| Mesh Size | Mesh Size 25mm, 30mm,35mm, 50mm |
| Second Layer | HDPE Monofilament UV Stabilized 115-120 GSM Nets |
| Fabricating | Machine Made Knotless type |
| Tie Rope & Tie Cord | Tie cords 2 meter long at four corners and 1 meter long at every 2 meter |
| Standard Size | 5Mtr x 10Mtr (Options of customized sizes are also available) |
| Standard/ Approved |
Testing Criteria for Safety Nets as per EN
1263 – 1 Drop test (dynamic test): The net
with stands drop of 100kg. Ball from a
height of 7m so that the energy of the dropping mass is 7KJ. The drop is done twice |
| Make | TUF NETS WITH MFGR CERTIFICATES |

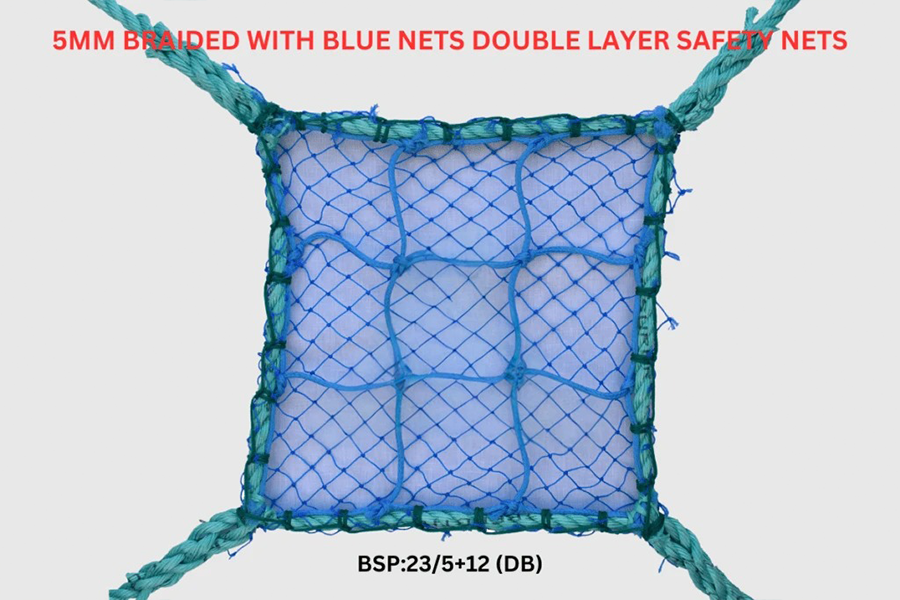

5mm Braided with Blue Nets Double Layer Safety Nets
| Product & Code | 5mm Braided with Blue Nets Double Layer Safety Nets – BSP:23/5+12 (DB) |
| Border & Tie Cord P.P.Rope Dia | 12mm [ IS: 14929 Breaking Strength 2700 kgf Modified Polypropylene filaments, UV Stabilized] |
| Inside Twine Dia | 5 mm Braided Mesh Size 100mm x100mm – ( 4″x 4″) HDPE ( High Density Polyethene -Twine Breaking Strength 100 kgf – IS:5185 – Part 4 2018) |
| Second Layer | Overlay Containment Net of HDPE Nets Mesh 15-22mm |
| Fabricating | Heat treated machine made knotting |
| Tie Rope & Tie Cord | Tie cords 2 metre long at four corners and 1 metre long at every 2 metre Interval distance |
| Standard Size | 5Mtr x 10Mtr (Options of customized sizes are also available) |
| Standard/ Approved | P.P. Rope Use By Super Tuf Certified to IS:14929 & Safety Net Made By As Per EN:1263 Part 1 |
| Make | TUF NETS WITH MFGR CERTIFICATE |

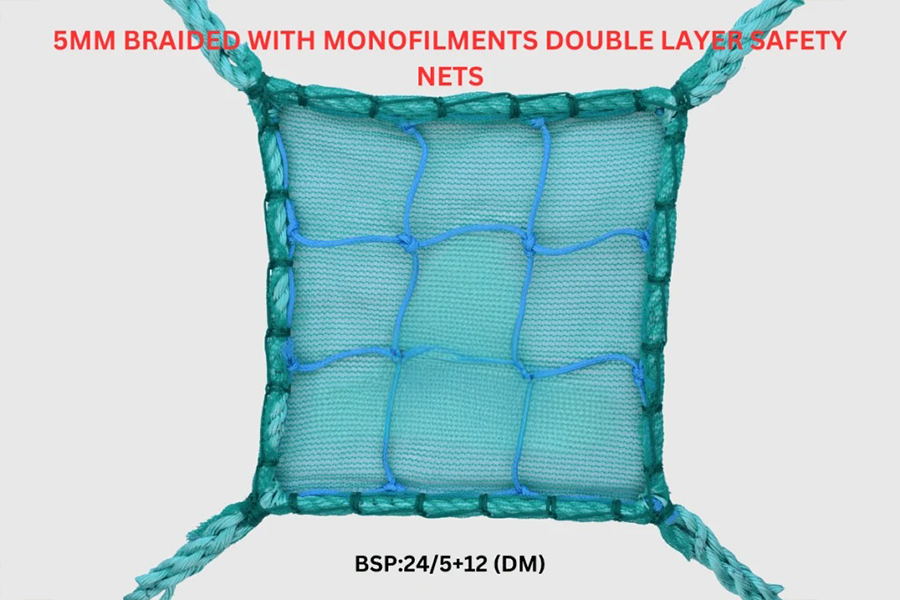

5mm Braided with Monofilments Double Layer Safety Nets
| Product & Code | 5mm Braided with Monofilments Double Layer Safety Nets – BSP:24/5+12 (DM) |
| Border & Tie Cord P.P.Rope Dia | 12mm [ IS: 14929 # 2700 Kgf – Breaking Strength 2700 kgf Modified Polypropylene filaments, UV Stabilized] |
| Inside Twine Dia | 5 mm Braided Mesh Size 100mm x100mm -( 4″x 4″) HDPE ( High Density Polyethene -Twine Breaking Strength 100 kgf – IS:5185 – Part 4 2018) |
| Second Layer | HDPE Monofilament UV Stabilized 115-120 GSM Nets |
| Fabricating | Heat treated machine made knotting |
| Tie Rope & Tie Cord | Tie cords 2 metre long at four corners and 1 metre long at every 2 metre Interval distance |
| Standard Size | 5Mtr x 10Mtr (Options of customized sizes are also available) |
| Standard/ Approved | P.P. Rope Use By Super Tuf Certified to IS:14929 & Safety Net Made By As Per EN:1263 Part 1 |
| Make | TUF NETS WITH MFGR CERTIFICATE |

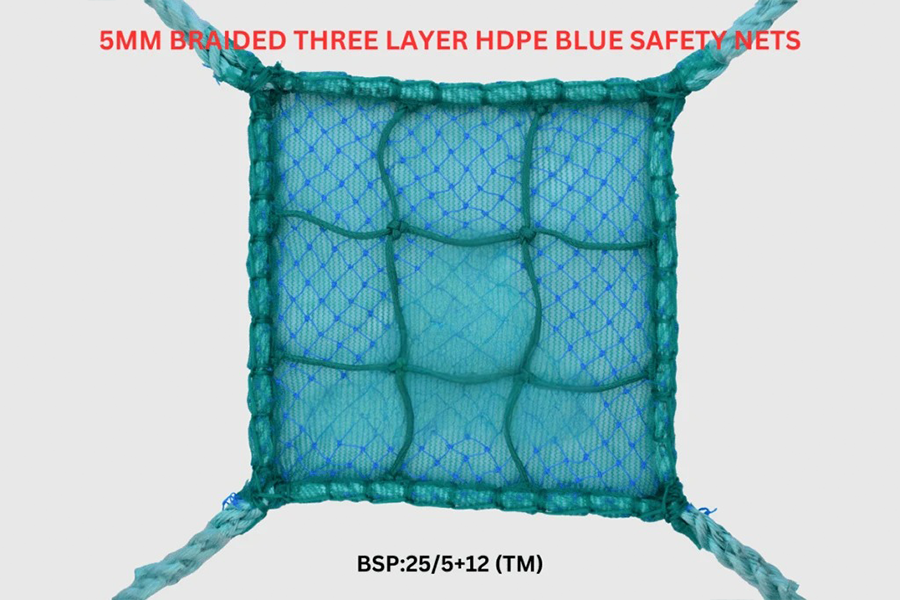

5mm Braided Three Layer HDPE Blue Safety Nets
| Product & Code | 5mm Braided Three Layer HDPE Blue Safety Nets – BSP:25/5+12 (TM) |
| Border & Tie Cord P.P.Rope Dia | 12mm [ IS: 14929 Breaking Strength 2700 kgf Modified Polypropylene filaments, UV Stabilized] |
| Inside Twine Dia | 5 mm Braided Mesh Size 100mm x100mm -( 4″x 4″) HDPE ( High Density Polyethene -Twine Breaking Strength 100 kgf – IS:5185 – Part 4 2018) |
| Second Layer | Overlay Containment Net of HDPE Net Mesh -15-22mm |
| Third Layer | HDPE Monofilament UV Stabilized 115-120 GSM Nets |
| Fabricating | Heat treated machine made knotting |
| Tie Rope & Tie Cord | Tie cords 2 metre long at four corners and 1 metre long at every 2 metre Interval distance |
| Standard Size | 5Mtr x 10Mtr (Options of customized sizes are also available) |
| Standard/ Approved | P.P. Rope Use By Super Tuf Certified to IS:14929 & Safety Net Made By As Per EN:1263 Part 1 |
| Make | TUF NETS WITH MFGR CERTIFICATE |
5mm Braided Three Layer HDPE Blue Safety Nets
| Product & Code | 5mm Braided Three Layer HDPE Blue Safety Nets – BSP:26/5+12 (TB) |
| Border & Tie Cord P.P.Rope Dia | 12mm [ IS: 14929 Breaking Strength 2700 kgf Modified Polypropylene filaments, UV Stabilized] |
| Inside Twine Dia | 5 mm Braided Mesh Size 100mm x100mm -( 4″x 4″) HDPE ( High Density Polyethene -Twine Breaking Strength 100 kgf – IS:5185 – Part 4 2018) |
| Second Layer | 5 mm Braided HDPE – Mesh Size – 25mm/30mm/35mm/50mm |
| Third Layer | HDPE Monofilament UV Stabilized 115-120 GSM Nets |
| Fabricating | Heat treated machine made knotting |
| Tie Rope & Tie Cord | Tie cords 2 metre long at four corners and 1 metre long at every 2 metre Interval distance |
| Standard Size | 5Mtr x 10Mtr (Options of customized sizes are also available) |
| Standard/ Approved | P.P. Rope Use By Super Tuf Certified to IS:14929 & Safety Net Made By As Per EN:1263 Part 1 |
| Make | TUF NETS WITH MFGR CERTIFICATE |
