Work Positioning Systems

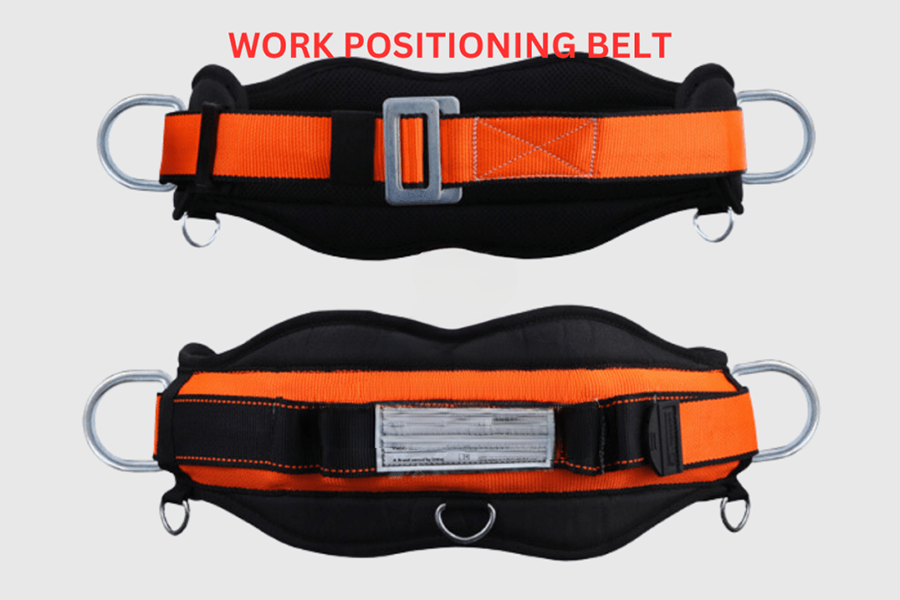

Work Positioning Belt
As a Industrial work Positioning Systems & Exporter in Maharashtra. also Providing Work Positioning Belt, Sit Harness, Sky Sheet – Pilot Chair, Trauma Suspension Strap, Winch, Tripod and many more. We are currently suppling this category to our Customers.
| Product & Code | Work Positioning Belt |
| Attachments Point | Two lateral D-ring at waist level side for working positioning job. Tool holder metal ring at back |
| Key Features | Thermo foam structure with soft cushion padded. High quality stiching thread with computer operated stitching |
| Adaptability | Adjustable waist strap |
| Standard | Certified to Conforms to EN 358 |
| Make | VIRAJ SAFETY / NEO SAFETY WITH MTC |

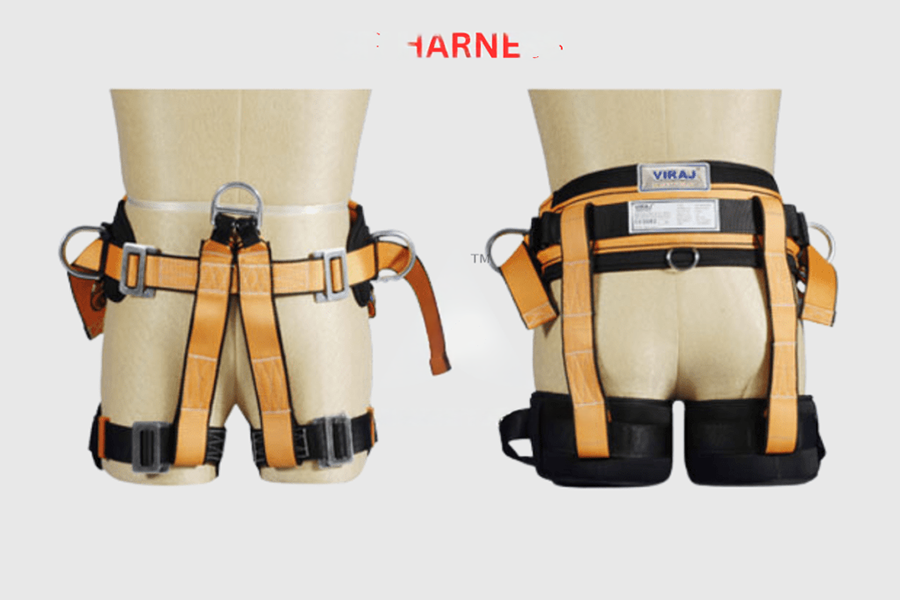

Sit Harness
| Product & Code | Sit Harness |
| Products Types | Work Positioning, Restraint System or Rope Access Work |
| Capacity | 25 KN |
| Strength | D-ring Location |
| Strap Adjastability | Waist level and Front Side |
| Webbing | Polyster – 44mm |
| Weight | 1700 Gg |
| Standards | EN 358:2000, EN 813:2008 |
| Make | VIRAJ SAFETY / NEO SAFETY WITH MTC |

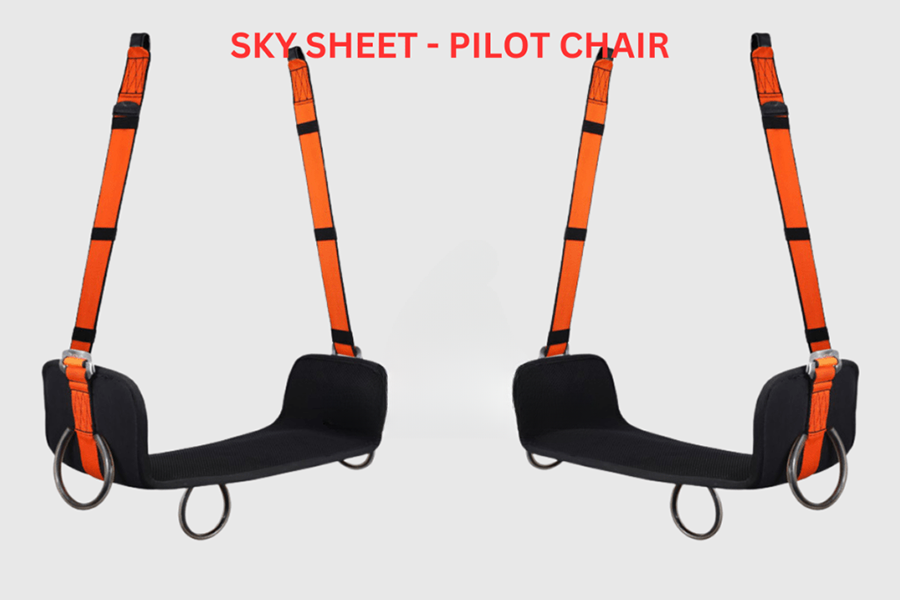

Sky Sheet - Pilot Chair
| Product & Code | Sky Sheet – Pilot Chair |
| Webbing | Material: High tenacity Polyester Width: 44mm Breaking Strength : 23kN |
| Metal Components | Material: Alloy Steel, Plating: Zinc Plated, Finish: Silver Galvanized |
| Design | To be used as an accessory with Harness having a Ventral D-ring at the waist level to which the karabiner is attached. Ergonomic & Comfortable working. Aluminium reinforcement inside |
| Standards | Conforms to EN 358, EN 813 |
| Make | VIRAJ SAFETY / NEO SAFETY WITH MTC |

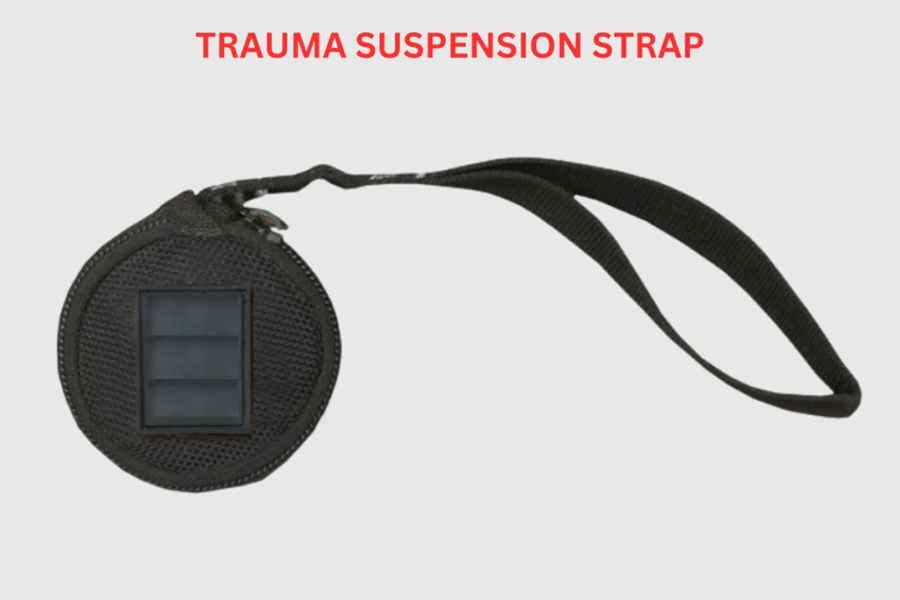

Trauma Suspension Strap
Key Features:
- Avoid the effects of Suspension Trauma with the use of Suspension Trauma Straps.
- Extremely effective; specially designed to help relieve the negative effects of Suspension Trauma.
- Does not hamper the activity of worker while working.
- Compact and Light-weight. Does not hamper the activity of worker while working. Compact and Light-weight.

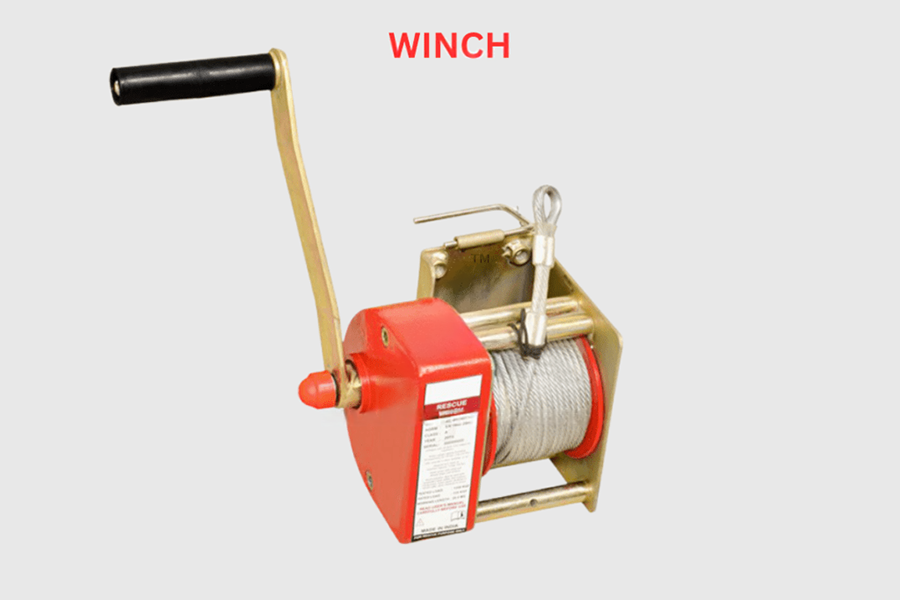

Winch
To be used for raising or lowering of personnel or
material into confined spaces. Equipped with
bolting fixture for robust fitting on to the
tripod TP-800.
Lifting Load Capacity:
135 Kgs (330 lbs).
Wire Length: 20 m,
25m.
Conforms to EN 1496:2006 Class A. To be used
with a Retractable Fall Arrester when deployed
for raising or lowering a person. Also Available
with the SS wire rope instead of galvanized
rope. Respective references with SS wire rope
shall be U802TW(20SS) and U802TW(25SS).

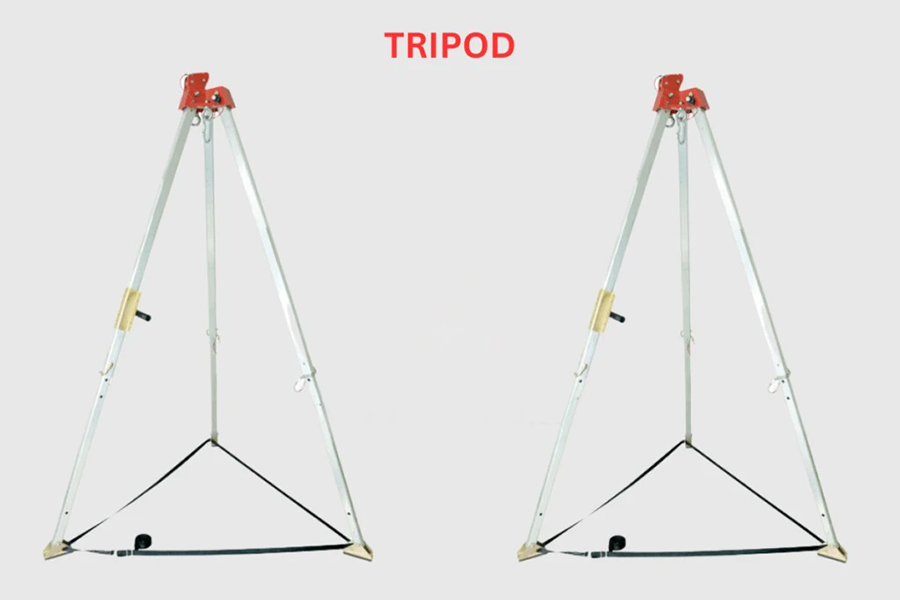

Tripod
Confined Space Lifting Load Capacity :
135 Kgs (330 lbs).
Wire Length:
available in 20 m and 25m.
Strength of
anchorage point greater than 12 kNvery Tripod is
provided with inbuilt fixture for attaching our
winch
| 7 FT | Fully adjustable telescopic legs, adjustable height from 1.15m to 2.15m |
| Wheelbase (Footprint) | 1.5m Diameter |
| Weight | 13 kg approx |
| Maximum load Capacity | 500 kgf |
| Compliance | EN 795 Class B |
| 10 FT | Fully adjustable telescopic legs, adjustable height from 1.9m to 2.9m |
| Wheelbase (Footprint) | 1.8m Diameter |
| Weight | 15 kg approx |
| Maximum load Capacity | 500 kgf |
| Compliance | EN 795 Class B |
